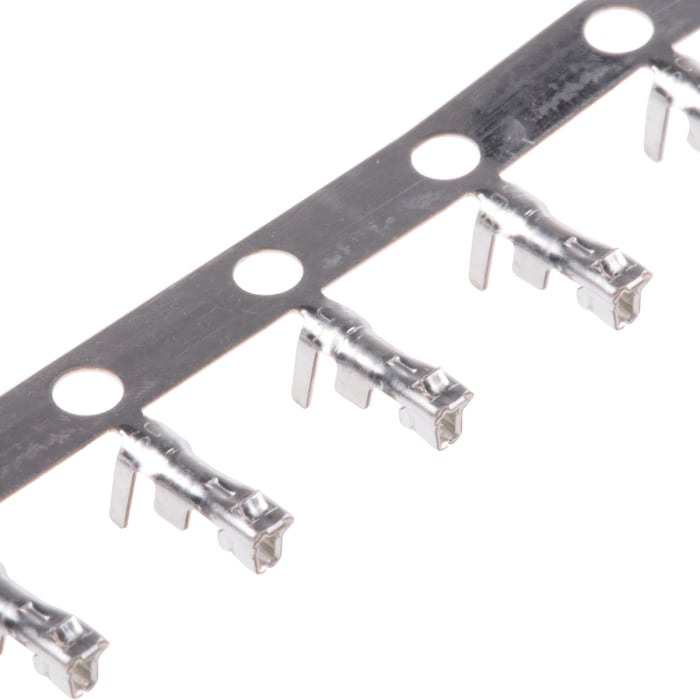

JST EH İzolesiz Kablo Ucu (Crimp Kontak), Dişi, 30AWG - 22AWG, 0,05mm² - 0,3mm², Kalay Kaplı
Teknik Belgeler
Özellikler
Marka
JSTCinsiyet
Dişi
Şununla Birlikte Kullanım İçin
EH Konnektör Muhafazası
Seri
EH
Minimum Wire Size mm²
0.05mm²
Sonlandırma Yöntemi
Sıkıştırma
Maximum Wire Size mm²
0.3mm²
Minimum Wire Size AWG
30AWG
Kontak Kaplaması
Kalay
Maximum Wire Size AWG
22AWG
Kontak Malzemesi
Fosfor Bronz
Maksimum Kontak Direnci
20mΩ
Maksimum Akım
3A
Minimum Çalışma Sıcaklığı
-25°C
Maksimum Çalışma Sıcaklığı
+85 °C, +85 °C
Menşe
Malaysia
Ürün Ayrıntıları
JST EH Series Crimp Contacts
The EH Connector series from JST are 2.5mm pitch, crimp-style connectors. This is a range of crimp receptacle contacts for use in the EH series crimp socket housings.
EH crimp contacts are compact and slim in design. Once mounted into the connector, it measures just 8.1mm high and 3.8mm wide. They are made from tin-plated phosphor bronze and a wire size range of 30 to 22 AWG.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stok bilgileri geçici olarak kullanılamıyor.
145,00 TL
1,45 TL Each (In a Pack of 100) (KDV Hariç)
174,00 TL
1,74 TL Each (In a Pack of 100) KDV Dahil
100
145,00 TL
1,45 TL Each (In a Pack of 100) (KDV Hariç)
174,00 TL
1,74 TL Each (In a Pack of 100) KDV Dahil
Stok bilgileri geçici olarak kullanılamıyor.
100
| Miktar | Birim Fiyat | Per Paket |
|---|---|---|
| 100 - 400 | 1,45 TL | 145,00 TL |
| 500 - 2400 | 1,334 TL | 133,40 TL |
| 2500 - 4900 | 1,218 TL | 121,80 TL |
| 5000 - 9900 | 0,986 TL | 98,60 TL |
| 10000+ | 0,928 TL | 92,80 TL |
