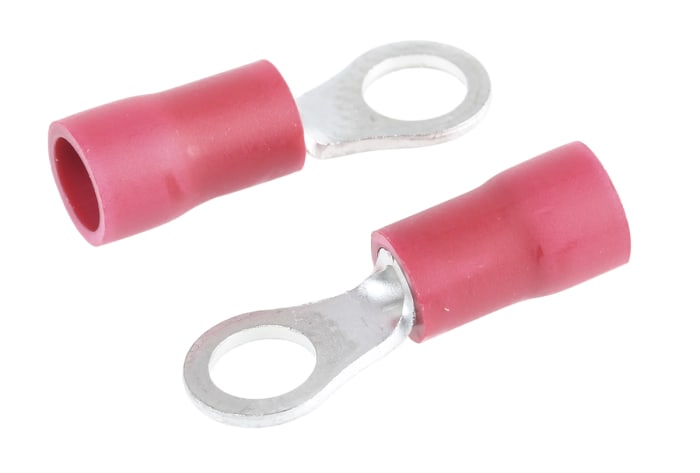

RS PRO İzoleli Yuvarlak Kablo Ucu, Kırmızı Kalay Kaplı, 22AWG - 16AWG, 0,5mm² - 1,5mm²

RS Stok Numarası: 267-3638Marka: RS PRODistrelec Article No.: 30419254
brand-logo

Teknik Belgeler

Özellikler

Marka

RS Pro

Seri

SNYD

Yalıtım

Yalıtımlı

Yalıtım Malzemesi

Naylon

İç Halka Çapı

4.3mm

Dış Halka Çapı

6.6mm

Minimum Wire Size mm²

0.5mm²

Maximum Wire Size mm²

1.5mm²

Minimum Wire Size AWG

22AWG

Maximum Wire Size AWG

16AWG

Saplama Boyutu

M4

Renk

Kırmızı

Kontak Kaplaması

Kalay

Kontak Malzemesi

Bakır

Kalınlık

0.75mm

Toplam Uzunluk

20.4mm

Maksimum Çalışma Sıcaklığı

+105°C

Minimum Çalışma Sıcaklığı

-40°C

Menşe

Taiwan, Province Of China

Ürün Ayrıntıları

RS PRO Nylon Insulated Double Crimp Ring Terminals

From RS PRO a high-quality insulated crimp ring terminal, also known as a ring connector or cable lug. Ring crimp terminals are used for connecting an electrical cable or wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive copper and has a double crimp design with an internal copper sleeve. This internal copper sleeve strengthens the barrel, provides a robust and secure crimp and protects the wire against stress and high vibration. The ring terminal is then tin plated for maximum electrical conductivity and corrosion resistance. A colour coded nylon insulation provides protection to the terminal and aids quick identification of the terminal size. Once correctly crimped onto a wire or cable this ring terminal will provide a secure and reliable electrical connection.

Approvals

UL Listed; UL Listed for Canada

Stok bilgileri geçici olarak kullanılamıyor.

746,70 TL

7,467 TL Each (In a Pack of 100) (KDV Hariç)

896,04 TL

8,96 TL Each (In a Pack of 100) KDV Dahil

RS PRO İzoleli Yuvarlak Kablo Ucu, Kırmızı Kalay Kaplı, 22AWG - 16AWG, 0,5mm² - 1,5mm²
sticker-359

746,70 TL

7,467 TL Each (In a Pack of 100) (KDV Hariç)

896,04 TL

8,96 TL Each (In a Pack of 100) KDV Dahil

RS PRO İzoleli Yuvarlak Kablo Ucu, Kırmızı Kalay Kaplı, 22AWG - 16AWG, 0,5mm² - 1,5mm²
Stok bilgileri geçici olarak kullanılamıyor.
sticker-359

Stok bilgileri geçici olarak kullanılamıyor.

Ayrıntılı bilgi için iletşime geçiniz

MiktarBirim FiyatPer Paket
100 - 4007,467 TL746,70 TL
500 - 24006,042 TL604,20 TL
2500+4,674 TL467,40 TL

Teknik Belgeler

Özellikler

Marka

RS Pro

Seri

SNYD

Yalıtım

Yalıtımlı

Yalıtım Malzemesi

Naylon

İç Halka Çapı

4.3mm

Dış Halka Çapı

6.6mm

Minimum Wire Size mm²

0.5mm²

Maximum Wire Size mm²

1.5mm²

Minimum Wire Size AWG

22AWG

Maximum Wire Size AWG

16AWG

Saplama Boyutu

M4

Renk

Kırmızı

Kontak Kaplaması

Kalay

Kontak Malzemesi

Bakır

Kalınlık

0.75mm

Toplam Uzunluk

20.4mm

Maksimum Çalışma Sıcaklığı

+105°C

Minimum Çalışma Sıcaklığı

-40°C

Menşe

Taiwan, Province Of China

Ürün Ayrıntıları

RS PRO Nylon Insulated Double Crimp Ring Terminals

From RS PRO a high-quality insulated crimp ring terminal, also known as a ring connector or cable lug. Ring crimp terminals are used for connecting an electrical cable or wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive copper and has a double crimp design with an internal copper sleeve. This internal copper sleeve strengthens the barrel, provides a robust and secure crimp and protects the wire against stress and high vibration. The ring terminal is then tin plated for maximum electrical conductivity and corrosion resistance. A colour coded nylon insulation provides protection to the terminal and aids quick identification of the terminal size. Once correctly crimped onto a wire or cable this ring terminal will provide a secure and reliable electrical connection.

Approvals

UL Listed; UL Listed for Canada
