RS PRO İzolesiz Yuvarlak Kablo Ucu, 4AWG - 4AWG, 25mm² - 25mm², Civata Ölçüsü: 17mm
Teknik Belgeler
Özellikler
Marka
RS ProYalıtım
Yalıtımsız
İç Halka Çapı
17mm
Dış Halka Çapı
28mm
Minimum Wire Size mm²
25mm²
Maximum Wire Size mm²
25mm²
Minimum Wire Size AWG
4AWG
Maximum Wire Size AWG
4AWG
Saplama Boyutu
17mm
Kontak Malzemesi
Bakır
Kontak Kaplaması
Kalay
Kalınlık
1.5mm
Toplam Uzunluk
49mm
Maksimum Çalışma Sıcaklığı
+150°C
Minimum Çalışma Sıcaklığı
-40°C
Menşe
Taiwan, Province Of China
Ürün Ayrıntıları

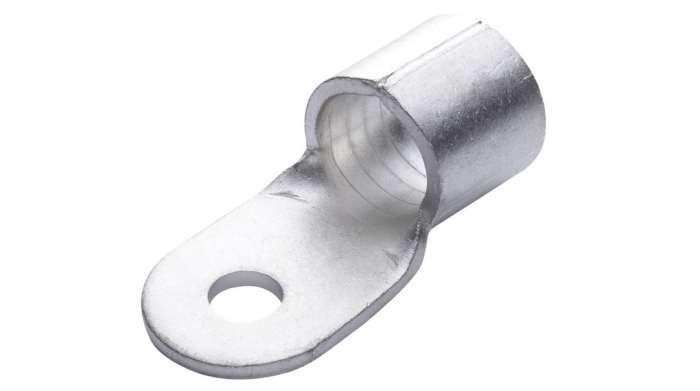

RS PRO Uninsulated Crimp Ring Terminals
RS PRO uninsulated crimp ring terminals are electrical connectors used to terminate or connect wires in various applications. Unlike insulated terminals that have a protective covering or sleeve, uninsulated crimp ring terminals consist only of a metal ring without any insulation.
These high-quality uninsulated crimp ring terminals are also known as a ring connector or cable lug. Ring crimp terminals are used for connecting an electrical cable or wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive copper with a brazed seam for maximum electrical conductivity and corrosion resistance.
