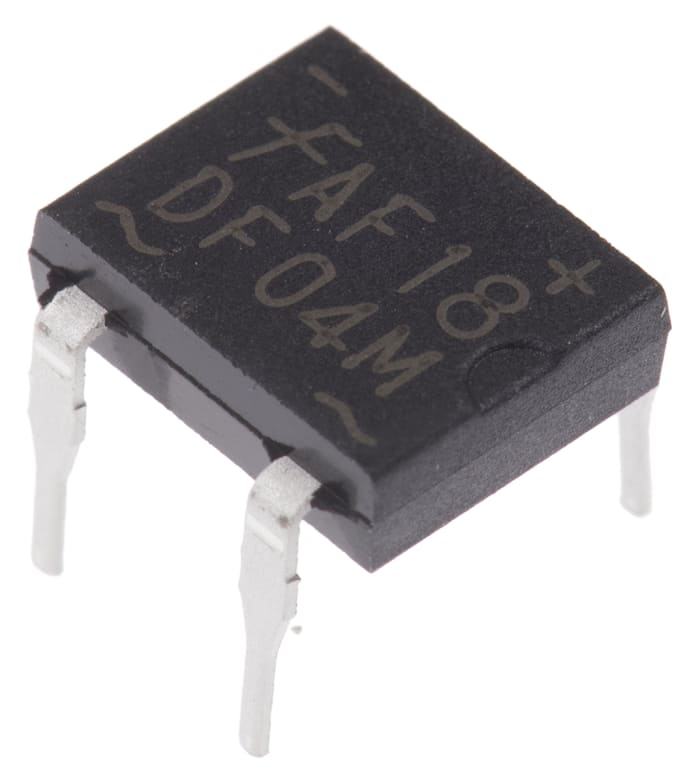

Vishay Bridge Rectifier, 1A, 400V, 4-Pin
Teknik Belgeler
Özellikler
Marka
VishayTepe Ortalama İleri Akım
1A
Köprü Tipi
Tek Fazlı
Tepe Ters Tekrarlayan Gerilim
400V
Montaj Tipi
Açık Delik
Paket Tipi
DF-M
Pim Sayısı
4
Yapılandırma
Tek
Tepe Tekrarlamayan İleri Ani Akım
50A
Maksimum Çalışma Sıcaklığı
+150°C
Minimum Çalışma Sıcaklığı
-55°C
Tepe İleri Gerilim
1.1V
Tepe Ters Akım
5µA
Boyutlar
8.51 x 6.5 x 3.3mm
Uzunluk
8.51mm
Yükseklik
3.3mm
Genişlik
6.5mm
Ürün Ayrıntıları
Bridge Rectifiers for PCB Mounting, DFxxM, DFxxMA Series, Vishay Semiconductor
Approvals
UL, E54214
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stok bilgileri geçici olarak kullanılamıyor.
158,10 TL
31,62 TL Each (In a Pack of 5) (KDV Hariç)
189,72 TL
37,944 TL Each (In a Pack of 5) KDV Dahil
Standart
5
158,10 TL
31,62 TL Each (In a Pack of 5) (KDV Hariç)
189,72 TL
37,944 TL Each (In a Pack of 5) KDV Dahil
Stok bilgileri geçici olarak kullanılamıyor.
Standart
5
| Miktar | Birim Fiyat | Per Paket |
|---|---|---|
| 5 - 45 | 31,62 TL | 158,10 TL |
| 50 - 245 | 26,784 TL | 133,92 TL |
| 250 - 495 | 23,56 TL | 117,80 TL |
| 500 - 1245 | 22,32 TL | 111,60 TL |
| 1250+ | 17,732 TL | 88,66 TL |
