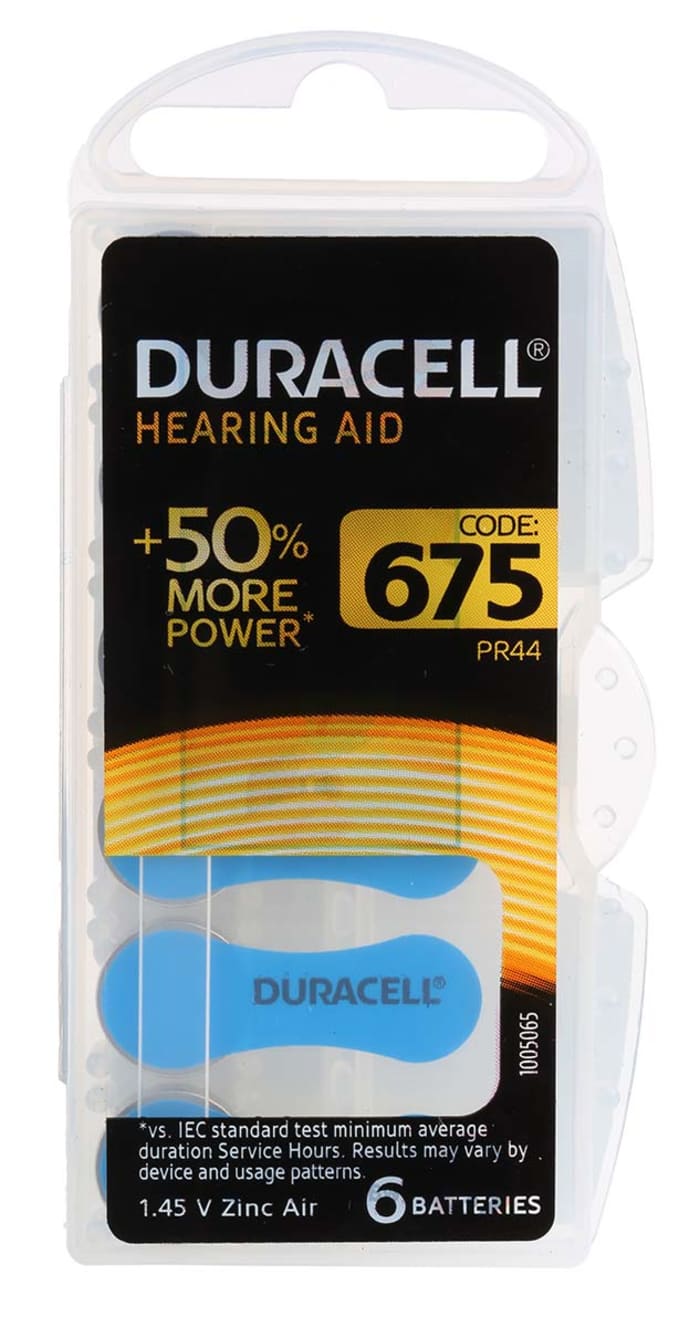

Duracell EasyTab, PR44 1,4V Para Pil

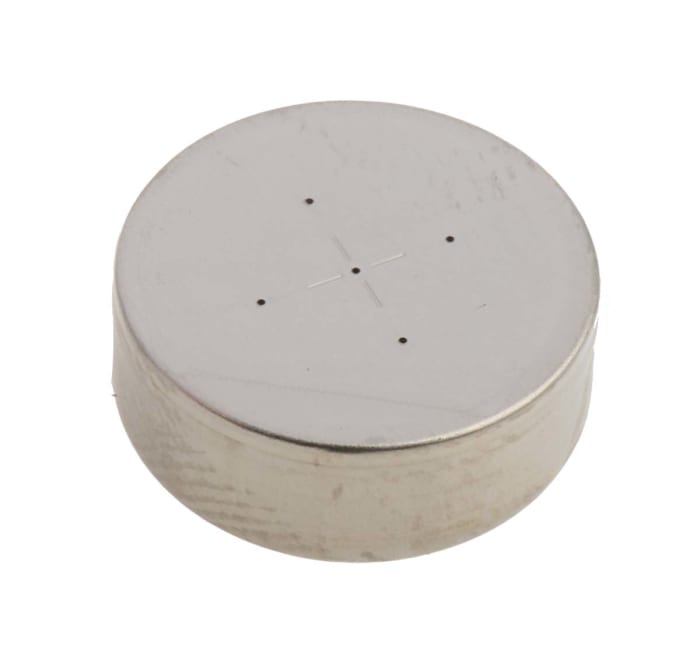

Duracell EasyTab Series Button Battery, 1.4V Nominal Voltage, 610mAh Rated Capacity - 96077580

This button battery provides a Compact zinc-air power source for low-drain medical devices. It operates at a nominal voltage of 1.4V and is designed for room-temperature use. The cell delivers a capacity that varies with load, temperature and cut-off voltage and features flat terminals for straightforward installation.

Features and Benefits:

• 610 mAh rated capacity provides extended service life
  Zinc-air chemistry offers high energy density per volume
  3 Ω internal impedance supports steady low-current delivery
  Operates between 0°C and 50°C for typical ambient conditions
  Flat terminals with standard termination simplify battery replacement

Applications

• Suitable for behind-the-ear hearing instruments
  Used with single-channel sound processors
  Ideal for replacement packs containing six cells
  Can be used for in-ear assistive listening devices

What is the expected delivered capacity dependency?

Delivered capacity depends on applied load, operating temperature and cut-off voltage and will vary accordingly.

How is the cell’s physical volume and mass described?

The cell occupies approximately 0.57cm3 and has an average mass of 1.8g.

What are typical discharge conditions referenced?

Typical discharge examples include intermittent and continuous low-current patterns such as 15mA pulses and multi-hour 5 to 8mA draws at 21°C.

Which standards approvals are cited for this product?

The cell meets both ANSI and IEC approvals.

Warning

Keep button batteries out of the reach of children. Consult a doctor immediately if ingested.
