Black stackable bunch pin plug,4mm

BSB 20 K Series, Hirschmann Test & Measurement Banana Plug

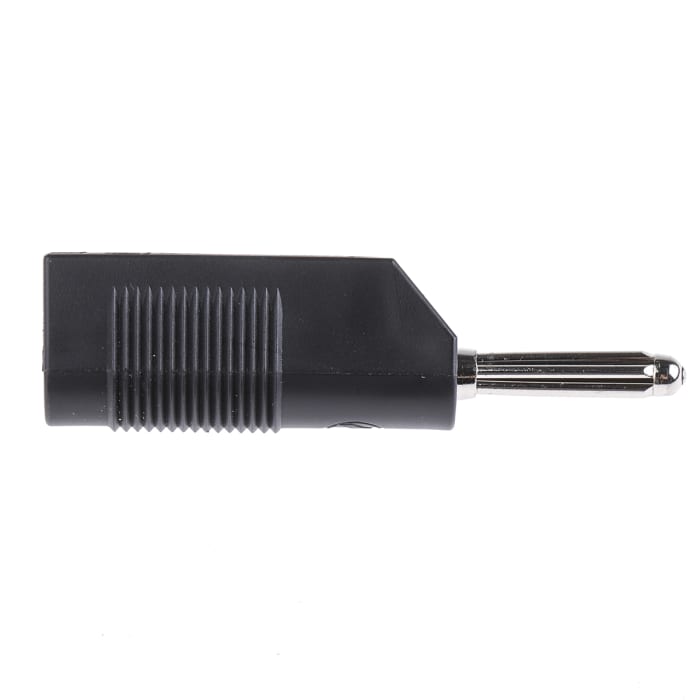

The Hirschmann Test & Measurement black, male banana plug is a multiple-spring wire connector. It has a cable gland and a 4mm socket for onward connection capability. It has a voltage rating of 30V ac/60V dc and a current rating of 30A.

Features and Benefits

• 4mm Pin
• Screw connection up to maximum cable cross-section of 2.5mm²
• Nickel-plated brass contact material
• Contact resistance is 3mOhm
• Insulation material is PP
• Spring contact
• Length is 56mm
• Temperature range: -25°C to +70°C
• CAT I

Applications

• These 4 mm black male connectors are popular as they can be connected and disconnected quickly and provide a high-quality connection in both electrical and electronic applications.

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• UL 94 HB approved
• IEC61010
