Black retractable shroud-stackable plug

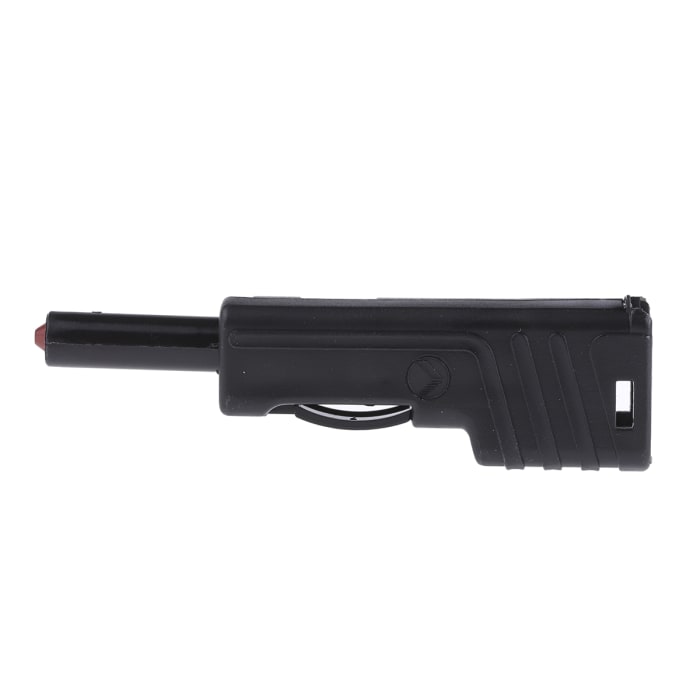

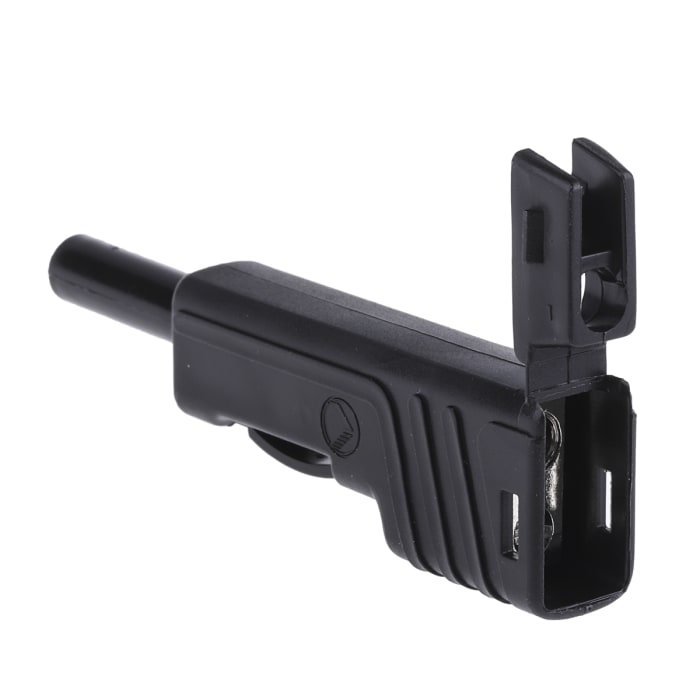

SLS 200 Series, Hirschmann Test & Measurement Banana Plug

The Hirschmann Test & Measurement SLS 200 series black banana plug is a male, touch-protected connector with the capability of further connection with a diameter of 4mm. It is insulated by latching and sprung insulating sleeve that is only released by pressure on the side-mounted locking spring. It has rated voltage of 60V dc with a current rating of 30A.

Features and Benefits

• Screw termination for cross-sections up to 2.5 mm²
• Nickel-plated copper beryllium contact
• 4mm sliding sleeve system
• Contact resistance is 5mOhm
• Spring loaded pin
• Spring contact
• Length is 65mm
• Insulation material is PP
• Temperature range: -25 °C to +80 °C

Applications

• These 4 mm black male connectors are popular as they can be connected and disconnected quickly and provide a high-quality connection in electrical applications.

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
