Toggle Switch / Toggle Anahtar, DPDT, 250 V ac'de 5 A, PCB'ye Monte, Açık-Açık

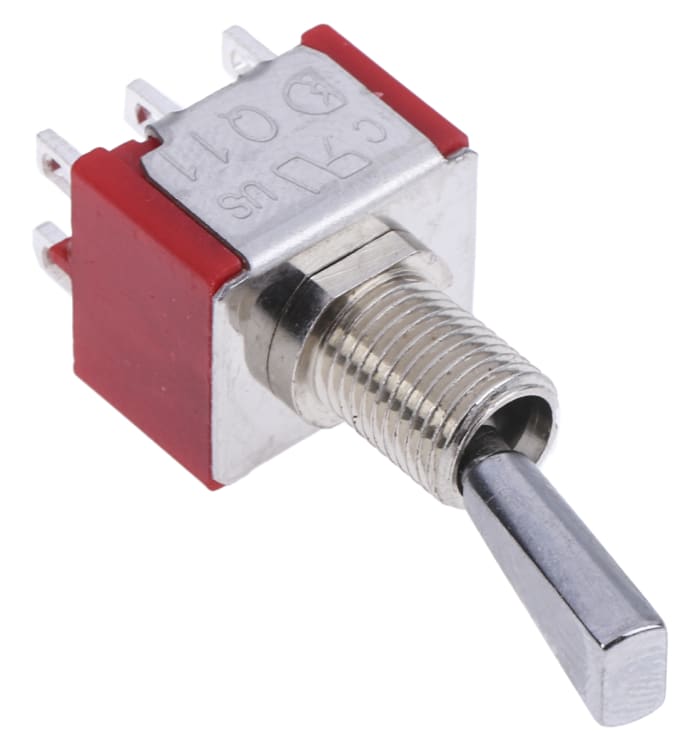

RS PRO DPDT Toggle Switch, Latching, PCB

To control two circuits with two actuators, use this DPDT (Double Pole Double Throw) toggle switch from RS PRO. It's commonly used to power lighting indications and operations in industrial machines and manufacturing lines.
The chrome-plated brass actuator on this switch is strong and corrosion-resistant. It's simple to use and locks into place to avoid inadvertent switching. Through-hole terminals make it simple to attach the switch onto a PCB (printed circuit board), while copper alloy contacts ensure rapid and dependable connections. The epoxy sealing prevents contamination when soldering to minimise the risk of breakage.
This item has been tested by engineers for durability and quality. It has a mechanical life of 40,000 make-and-break cycles, so you can expect long-lasting performance. This switch is suitable for use in tough industrial environments thanks to its wide operating temperature range of -30°C to +85°C.

Features and Benefits

• Actuator length of 10.41 mm
• Brass actuator material
• DPDT contact configuration
• Contact current rating of 5 A at 250 V AC
• Copper alloy contact material
• Contact resistance of 10 mΩ
• Operating temperature range of -30ºC to +85ºC
• Mechanical life of 40000 cycles
• PCB mounting type
• Meets lead-free standards and is RoHS (Restriction of Hazardous Substances) compliant
• Latching operation
• Through-hole terminal type

Applications
