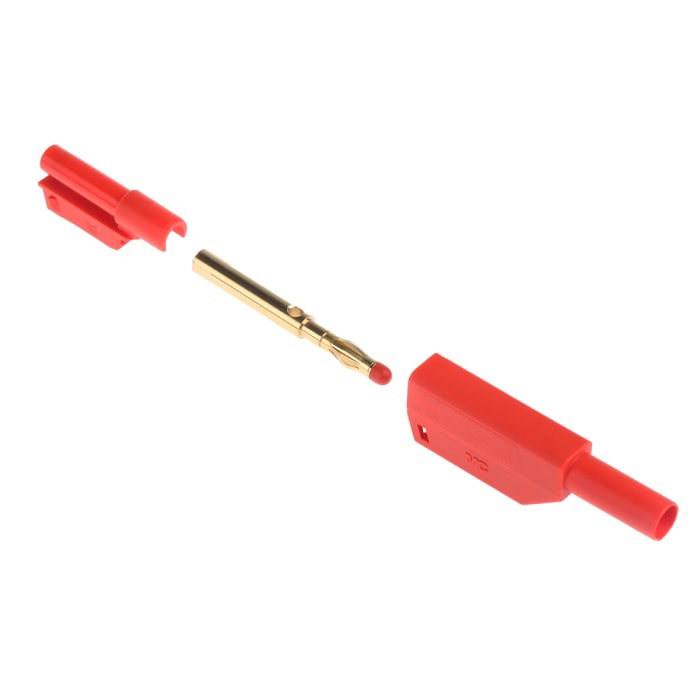

Red shrouded stackable plug,4mm

Multi Contact Male Banana Plug

The Multi Contact red, male banana plug is a 4 mm connector and is used for joining wires to electronic equipment. It has spring-loaded Multilam for self-assembly of test leads and a rigid insulating sleeve. The male plug incorporates enhanced cable retention system and has a voltage rating of 1kV and current rating of 32A.

Features and Benefits

• Solder termination
  Lantern style spring contacts
  Non-retractable shrouds
  Designed for 2.5 mm² cable
  Up to 5000 insertions/withdrawals
  Shrouded centre contacts
  Maximum cable diameter is 4.1 mm
  Gold plated brass or copper alloy contact material
  Length is 56.3 mm
  Insulation material polyamide

Applications

• These 4 mm connectors are popular as they can be connected and disconnected quickly and provide a high-quality connection in many applications such as:
  Automotive (car manufacturing plant equipment)
  Motorsports
  Aeronautics (plant equipment)

Certifications

• ANSI/ESD S20.20:2014
  BS EN 61340-5-1:2007
  IEC1010

Colours available in this Stackable 4 mm plug series include:
<a href="JavaScript:showLine('446-838')"><span class="inlineLink">446-838</span></a> – black
<a href="JavaScript:showLine('446-844')"><span class="inlineLink">446-844</span></a> – red
<a href="JavaScript:showLine('446-850')"><span class="inlineLink">446-850</span></a> – blue
<a href="JavaScript:showLine('446-888')"><span class="inlineLink">446-888</span></a> – yellow
<a href="JavaScript:showLine('446-866')"><span class="inlineLink">446-866</span></a> – green
<a href="JavaScript:showLine('163-205 ')"><span class="inlineLink">163-205 </span></a>– brown
<a href="JavaScript:showLine('163-211')"><span class="inlineLink">163-211</span></a> – grey
<a href="JavaScript:showLine('446-872')"><span class="inlineLink">446-872</span></a> – white

What is MULTILAM technology?
MULTILAM is a high-power contact solution used in a socket or plug, which is continuously being developed further. Inserted between two surfaces the MULTILAM is a band which forms a contact cage. Ideal for connectors which require linear or rotary movements due to its ability to excel in performance from signal currents up to extremely high currents. MULTILAM bands significantly reduce the overall contact resistance due to the numerous contact points provided, this is because the design creates many louvres (slats). Stäubli describe these bands as torsion or leaf spring contact elements.
