TE Connectivity Buchanan Series PCB Terminal Block, 2-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination
Teknik Belgeler
Özellikler
Marka
TE ConnectivityKontakların Sayısı
2
Hatve
5mm
Sıraların Sayısı
1
Montaj Tipi
Açık Delik
Sonlandırma Yöntemi
Vida
Tip
Fiş
Akım Değeri
10A
Gövde Yönü
Dik Açı
Renk
Mavi
Gerilim Değeri
300 V ac
Seri
Buchanan
Derinlik
13.6mm
Uzunluk
10mm
Malzeme
Naylon, PET
Genişlik
11mm
Ürün Ayrıntıları

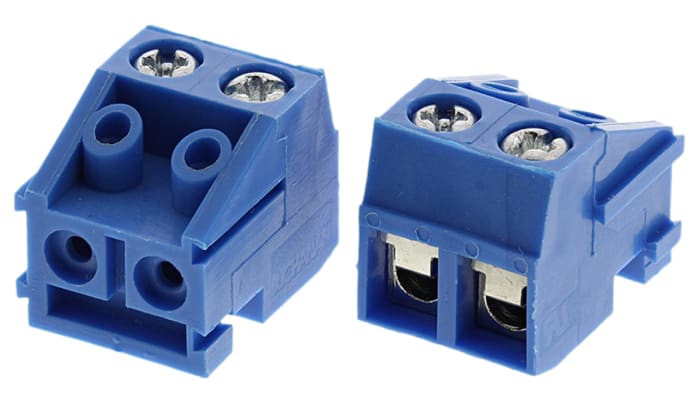

TE Connectivity TERMI-BLOK 5.0mm Flush Mount Terminal Block Plug Connector
TERMI-BLOK 5.0mm pitch right angle flush mount high temperature terminal block plug connectors with a side wire entry and interlocking feature. These 5.0mm TERMI-BLOK flush mount terminal block plug connectors have screw terminals that accept a wire size range of 24 to 16 AWG and are made from blue nylon. In addition these TERMI-BLOK 5mm pluggable terminal blocks have a wire guard to prevent screw from pressing directly onto the wire.
Standards
UL 94V-0
TE Connectivity TERMI-BLOK 5.0mm Two Part Terminal Blocks
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
8.625,75 TL
69,006 TL Each (Supplied in a Box) (KDV Hariç)
10.350,90 TL
82,807 TL Each (Supplied in a Box) KDV Dahil
Üretime Uygun Paketleme (Kutu)
125
8.625,75 TL
69,006 TL Each (Supplied in a Box) (KDV Hariç)
10.350,90 TL
82,807 TL Each (Supplied in a Box) KDV Dahil
Üretime Uygun Paketleme (Kutu)
125
Stok bilgileri geçici olarak kullanılamıyor.
Ayrıntılı bilgi için iletşime geçiniz
| Miktar | Birim Fiyat | Per Kutu |
|---|---|---|
| 125 - 370 | 69,006 TL | 345,03 TL |
| 375 - 995 | 57,558 TL | 287,79 TL |
| 1000 - 1995 | 48,336 TL | 241,68 TL |
| 2000+ | 46,004 TL | 230,02 TL |
