PUSHBUTTON GREY 16A 1NO1NC

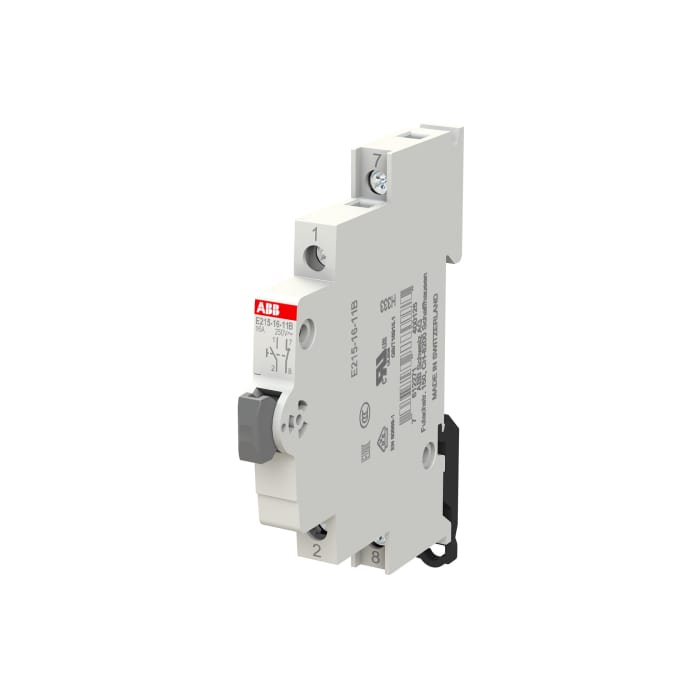

ABB E215 Series Circuit Trip, 16A Current Rating, 250V AC Control Voltage - 2CCA703150R0001 E215-16-11B

This circuit trip provides a Compact manual trip function for control and protection circuits within modular installations. Designed for integration into socket systems and control enclosures, it allows deliberate disconnection of circuits and interfaces directly with DIN-rail mounted assemblies.

Features and Benefits:

• Rated for 16A to manage moderate load currents and protect downstream devices
  Operates at 250V AC for compatibility with common control voltages
  Single changeover contact offers both make and break functionality
  Connection Terminal format ensures secure wiring terminations
  DIN rail mountable to fit standard 35mm rail installations
  Push-button actuation enables Rapid manual tripping when required

Applications

• Suitable for use with SMISSLINE socket system accessory modules
  Ideal for integration into System Pro M Compact control cabinets
  Used with DIN35mm rail assemblies in industrial control panels
  Can be used for manual tripping of local circuit control lines

What contact arrangement does it provide for control circuits?

It uses a single changeover configuration giving one normally open and one normally closed contact for flexible control logic.

How is the unit physically mounted within an enclosure?

The device is designed for snap-fit installation onto a 35mm DIN rail to simplify panel assembly and rearrangement.

Which connection method is provided for wiring?

Wiring is accommodated via a connection Terminal intended for secure conductor attachment in fixed installations.

Which actuator type does it use for manual operation?

Manual operation is via a push-button actuator to allow intentional circuit interruption by an operator.

Notes

These contacts can not be used with type ESB20 installation contactors, only higher types e.g. ESB24
