PUSHBUTTON YELLOW 16A 1NO1NC

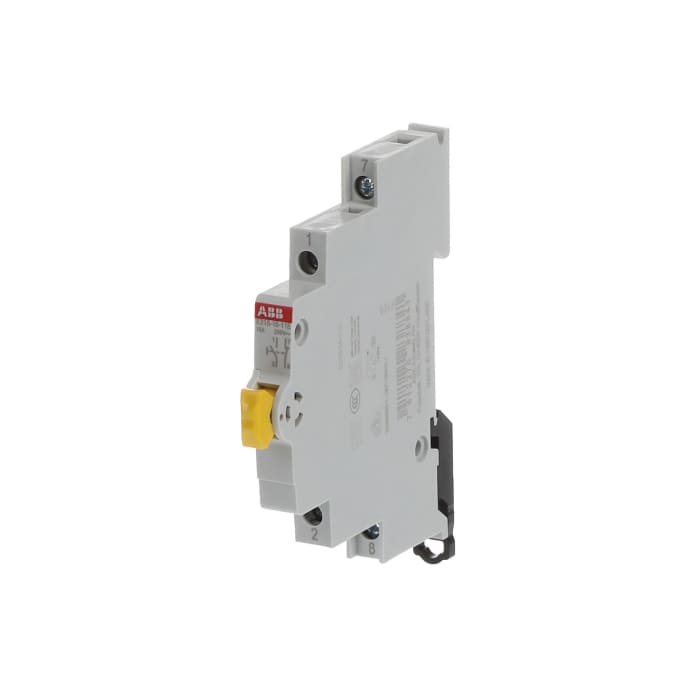

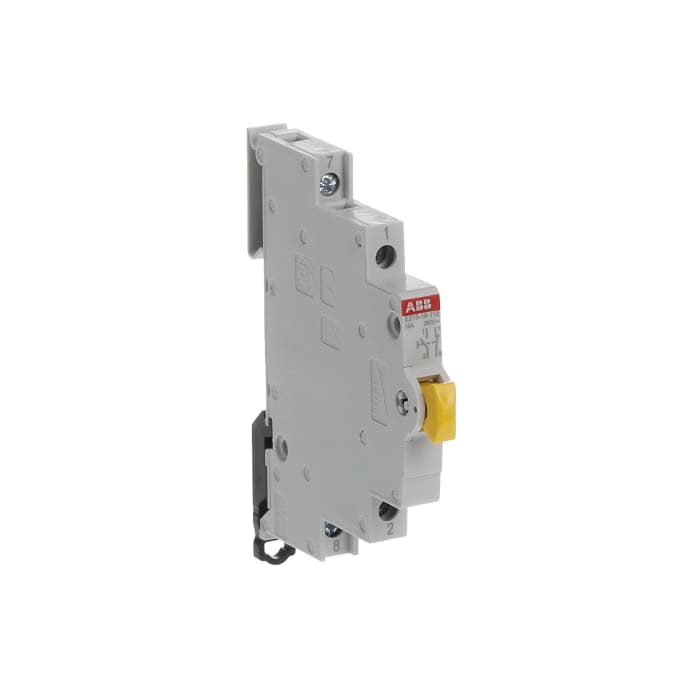

ABB E215 Series Circuit Trip, 16A Current Rating, 250V AC Control Voltage - 2CCA703153R0001 E215-16-11E

This circuit trip provides a Compact manual tripping and control function for electrical panels and automation racks. Designed for rail mounting, it operates within control circuits to switch and interrupt current in response to operator action, making it suitable for protective and control schemes in industrial installations.

Features and Benefits:

• Single-pole contact set offers one changeover contact and one maintained contact Rated for 16 A to manage moderate load currents in control circuits Operates at 250 VAC to match common industrial control voltages DIN rail mounting for fast panel installation and replacement Push-button actuation enabling quick manual intervention in faults

Applications

• Suitable for control panels in manufacturing automation systems Ideal for use with motor control and auxiliary protection circuits Used with distribution boards requiring Compact manual trip functions Can be used for retrofit replacement in System Pro M Compact racks

How many contact paths does it provide for control logic?

It has a single changeover contact Plus a single normally closed contact allowing both make and break signalling within a control loop.

What mounting method is required for panel fitting?

The unit clips onto a standard DIN rail for simple mechanical and electrical integration in modular enclosures.

What manual action initiates the switching operation?

A push-button mechanism is used to trigger the trip, providing immediate operator-controlled interruption.

Which environments is it engineered to serve regarding electrical capacity?

It is specified to handle control and auxiliary duties up to 16 A at 250 VAC, suitable for many industrial control applications.

Notes

These contacts can not be used with type ESB20 installation contactors, only higher types e.g. ESB24
