PUSHBUTTON BLUE 16A 1NO1NC

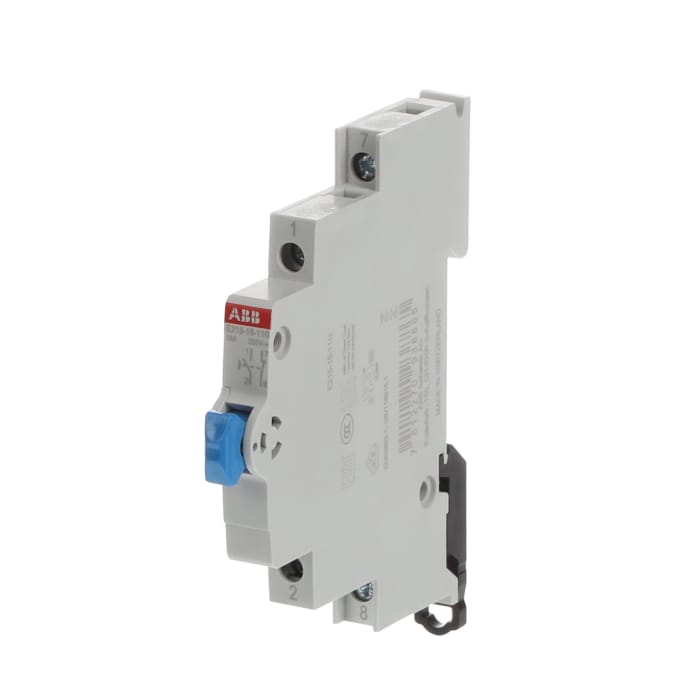

ABB E215 Series Circuit Trip, 16A Current Rating, 250V AC Control Voltage - 2CCA703155R0001 E215-16-11G

This circuit trip is a DIN-rail mounted push-button device designed to work within System Pro M Compact and SMISSLINE socket systems. It provides a means to initiate or interrupt control circuits in automation and electrical installations, accommodating standard industrial control voltages and contact arrangements for integration into modular distribution assemblies.

Features and Benefits:

• 16A current rating delivers dependable switching capacity for control circuits
  250V AC control voltage supports common industrial supply levels
  1 NO 1 NC contact configuration enables both make and break functions
  DIN-rail mount ensures straightforward panel installation
  Push-button sub type offers simple manual actuation without auxiliary tools

Applications

• Suitable for use in motor control and starter panels within automation systems
  Ideal for integration into SMISSLINE socket system assemblies in control cabinets
  Used with System Pro M Compact assemblies as an auxiliary switching device
  Can be used for manual tripping in industrial distribution and process control

What contact arrangement does it provide for control logic?

It provides one normally open and one normally closed contact, allowing simultaneous changeover and offering flexibility for signalling and interlock circuits.

Which mounting method is supported for panel integration?

It is intended for DIN-rail mounting, enabling Rapid fitting into standard industrial enclosure rails and compatibility with modular assemblies.

What operational voltage should be applied to the control input?

The device is specified for operation at 250V AC control voltage, matching common control supply standards in industrial environments.

How does the unit suit Compact modular systems?

Its construction and sub type are designed for use within Compact modular ranges, facilitating space-efficient installation and straightforward interaction with related components.

Notes

These contacts can not be used with type ESB20 installation contactors, only higher types e.g. ESB24
